Dak storm rainwater collection basins



DAK-Storm:
RAINWATER COLLECTION BASINS

SOLUTIONS FOR STORMWATER INFILTRATION, LAMINATION AND REUSE

DAK-Storm is a buried, modular, ultra high efficiency system consisting of injection moulded draining blocks made of high resistance polypropylene (PP). Designed to build underground reservoirs for water storage, lamination or dispersion.

aree commerciali e direzionali

Need to deal with large volumes of water in limited spaces?

Underground space is valuable. DAK-Storm
was designed to maximise the storage
capacity within the smallest footprint.:

  • Maximum volume efficiency
  • withstand heavy traffic conditions
  • fully inspectionable
aree residenziali-dak-storm

MAXIMUM CAPACITY

Cavity Content
> 96%

Its very high cavity content almost equals its total footprint. This means being able to either stock or infiltrate large amounts of water in significantly smaller excavations than conventional solutions.

CERTIFIED SECURITY

High mechanical
resistance

Designed to withstand significant vertical and lateral loads, based on stratigraphy. This offers utmost safety and durability over time, in addition to making the module installable in areas under the stress of heavy loads.

FULLY INSPECTIONABLE

Fast Inspection
& Maintenance

The system is fully inspectionable via specific manholes, facilitating monitoring, cleaning, and performance maintenance over time. This represents a documented design advantage in terms of reliability.

Why choose DAK-Storm:
The solution for lamination projects

  • Certified structural strength
    Injection-molded PP-H modules, designed to withstand high loads even in layers exposed to heavy traffic.

  • Real volumetric efficiency
    Vacuum index higher than 96%: more usable capacity, less excavation, less civil engineering work.

  • Modularity and quick installation
    Interlocking assembly, floor plan and multi-level configuration, ideal for confined spaces and irregular lots.

  • Total inspectability
    Specific manholes, access to internal components, simplified maintenance, and hydraulic performance checkable over time.
progetti di sviluppo sostenibile-1

Lamination systems with DAK-Storm underground modules

invarianza-idrologica
Drainage System

Hydrological Invariance

Drainage system wrapped in geotextile that facilitates infiltration or the controlled release of rainwater, reducing the load on networks. Ideal for urban developments, parking lots, and projects with hydrological invariance.

infiltrazione-e-laminazione
Mixed System

Infiltration + Lamination

Combines infiltration and lamination, with flow regulated by pipe or pump. Ideal for soils with variable permeability and urban projects with hydraulic mitigation. Reduces the risk of flooding and slows down the peak flood.

bacini-di-accumulo
Lamination System

Storage Basins - Hydraulic Invariance

Temporarily stores rainwater and releases it gradually. Ideal for impermeable soils and intense events. Improves safety and reduces the load on networks.

recupero-e-riutilizzo-delle-acque
Recovery System

Rainwater Capture and Reuse

Collect, store, and reuse rainwater for undrinkable purposes. Can be integrated with filtration and lifting systems. Ideal for agriculture, irrigation, industry, and commercial areas. Supports sustainable water management.

SOLUTIONS DESIGNED TO COVER THE ENTIRE WATER CYCLE

An integrated approach to water management

Dak Storm collegamento canaletta e pozzetto - dimensioni grandi

DAKOTA provides a fully integrated ecosystem for capturing, conveying, regulating, infiltrating, or reusing rainwater. Each component is designed to work in synergy, offering designers maximum flexibility and reliable performance over time.

Dakota's approach ensures total inter-operability: DAK-Storm basins, trench drains, grates, and catchpits form a single functional chain.

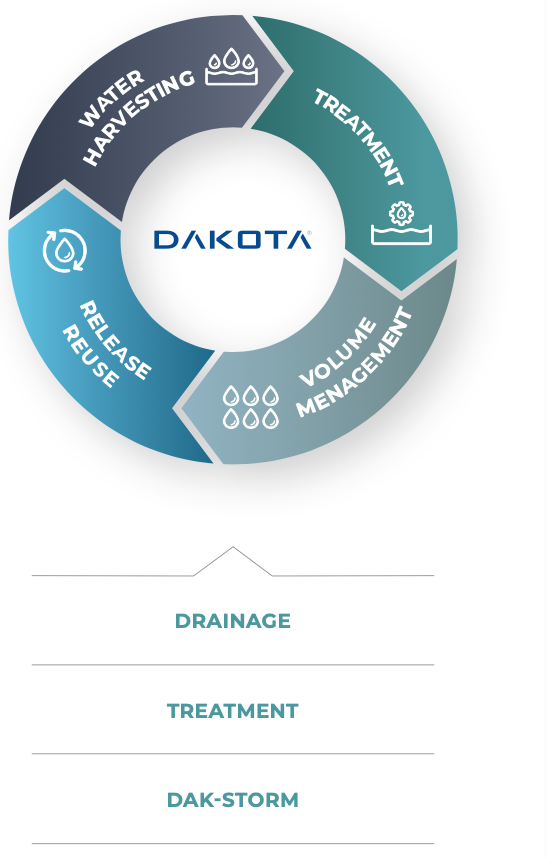

water management cycle

BENEFITS OF THE RANGE

Flexibility for every project

Dak-Storm responds to the uniqueness of your project thanks to its modular structure: lightweight, easy to handle, and simple to assemble.

The modules can be combined horizontally or vertically for a multi-level installation, adapting perfectly to the geometry of the site and the required volumes.



Discover all the logistics advantages of our drainage system.

WHY CHOOSE DAK-Storm FOR YOUR PROJECTS

Certified Structural Resistance

ADVANCED TECHNOLOGY

DAK-Storm modules are made of high mechanical strength polypropylene (PP) using precision injection molding.

The optimized internal structure is designed to withstand high vertical and lateral loads, ensuring excellent performance even with heavy traffic.

Certified load capacity: 380 kN according to EN17152

celle drenanti resistenza meccanica

OPTIMIZED DESIGN

The DAK-Storm system is the result of rigorous controls throughout the production chain, guaranteeing superior quality:

  • Selected raw materials
  • Controlled production
  • Specialized laboratory testing
  • Complete traceability

Equipped with an oversized connector for better force distribution

incastro semicella 1

Where to install the DAK-Storm Lamination Tank

The flexibility and performance of DAK-Storm make it the ideal choice for a wide range of applications:

  • Residential areas

  • Logistics and industry

  • Parking lots (surface and underground)

  • Sports facilities

  • Commercial and office areas

  • Sustainable development projects
aree commerciali e direzionali
aree logistiche
aree residenziali 2
impianti sportivi-1
parcheggi-1
progetti di sviluppo sostenibile-1
