ANCHORS COAT
SGR-PA
WITH POLYAMIDE PERCUSSION NAIL

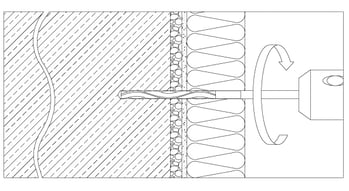

Hammering anchor hole 8 mm, with pre-assembled nail into the anchor’s body.
Dimension of the head 60 mm with improved adherence and black nylon expansion nail.
It complies to ETAG014.
Main news of this new range of products are:
- Pre-assembled nail, for a faster installation.
- Variable section of the anchor’s body (fixing diameter 8 mm).
- Asymmetric expansion of the anchor’s body.
- Customizable anchor’s head.
- Packed in box of 100 pcs. each.
Body and head made of PP (polypropylene), nails made of polyamide (PA).
Used for the mechanical anchoring of insulating panels, mineral wool and for the main types of masonry, supporting its load and tensile stress.

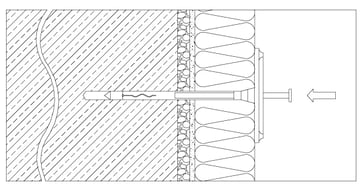

The pre-assembled nail facilitates and accelerates the installation of the anchor
The fixing dowel sizes range from 110 to 250 mm, for the mechanical fixing of insulation with thicknesses from 60 to 200 mm.
ANCHORS COAT
SGR-AP
WITH STEEL HAMMERING NAIL
Hammering anchor hole 8 mm, with pre-assembled nail into the anchor’s body.
Dimension of the head 60 mm with improved adherence and torx-ready coloured plastic nail cap.
It complies to ETAG014.
Main news of this new range of products are:
- Pre-assembled nail, for a faster installation.
- Variable section of the anchor’s body (fixing diameter 8 mm).
- Asymmetric expansion of the anchor’s body.
- Customizable anchor’s head.
- Packed in box of 100 pcs. each.
Body and head made of PP (polypropylene), steel nail and PA nail cap (polyamide) .
Used for the mechanical anchoring of insulating panels, mineral wool and for the main types of masonry, supporting its load and tensile stress.
The pre-assembled nail facilitates and accelerates the installation of the anchor.
Available fixing dowel lengths range from 110 mm to 310 mm for fixing insulation with thicknesses from 60 mm to 260 mm.
ANCHORS COAT
SGR-AV
WITH STEEL SCREWING NAIL
Hammering anchor hole 8 mm, with pre-assembled nail into the anchor’s body.
Dimension of the head 60 mm with improved adherence and torx-ready coloured plastic nail cap.
It complies to ETAG014.
Main news of this new range of products are:
- Pre-assembled nail, for a faster installation.
- Variable section of the anchor’s body (fixing diameter 8 mm).
- Asymmetric expansion of the anchor’s body.
- Customizable anchor’s head.
- Packed in box of 100 pcs. each.
Body and head made of PP (polypropylene), screw made of steel and nail cap in polyamide (PA).
Used for the mechanical anchoring of insulating panels, mineral wool and for the main types of masonry, supporting its load and tensile stress.
The pre-assembled nail facilitates and accelerates the installation of the anchor.
Available fixing dowel lengths range from 110 mm to 310 mm for fixing insulation with thicknesses from 60 mm to 280 mm.
ANCHORS COAT
SGR-UNI
UNIVERSAL HELICOIDAL ANCHORS
Anchor with 67 mm helical body with integrated expansion body ∅ 8 mm and fixing screw (torx 30).
A single size for panels from 100mm up to 400mm thickness, applicable on various types of insulation:
- PUR
- Minerale wools
- EPS
- Phenolic resin
The product guarantees the absence of thermal bridge (Value 0.000W / K) and can be used both on new buildings and on the renovation of existing buildings, compliant with ETAG014, and can be used on supports of classes A, B, C, D and E.
The anchor is made of PA (polyamide), expansion body in PP and fixing screw in galvanized steel.
The regulation bar is made of galvanized steel and the finishing plug in EPS (polystyrene).
Used for mechanical anchoring of insulating panels (although minerals, EPS, phenolic resin) and for the main types of masonry, supporting the load and stress of traction "to tear".
The length of the dowel is unique and allows insulation thicknesses from 100 mm to 400 mm to be fixed.
